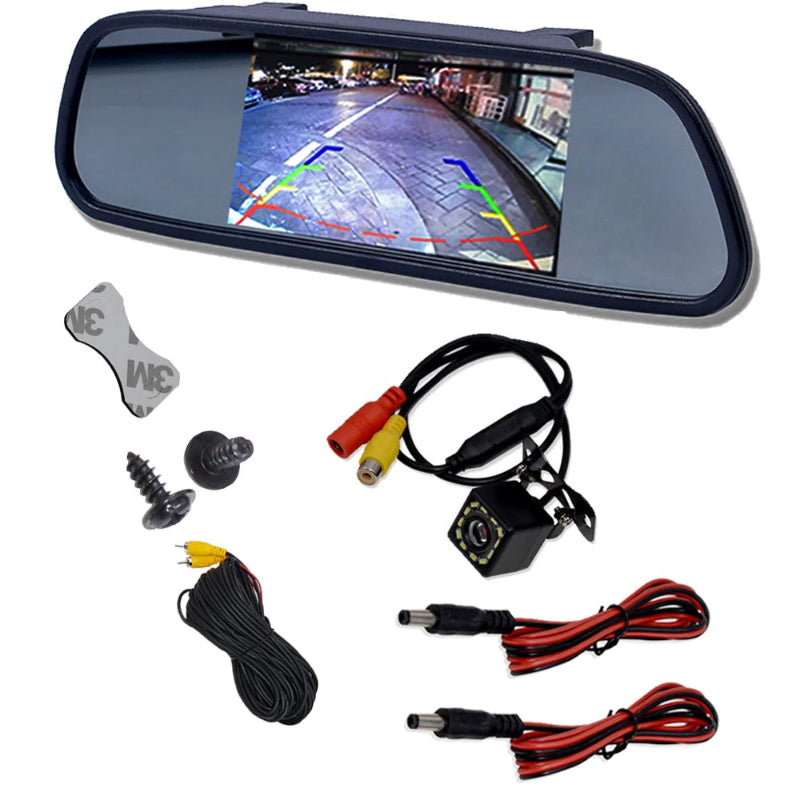

• Reverse Camera Monitor Mirror 12V 24V in Vehicle

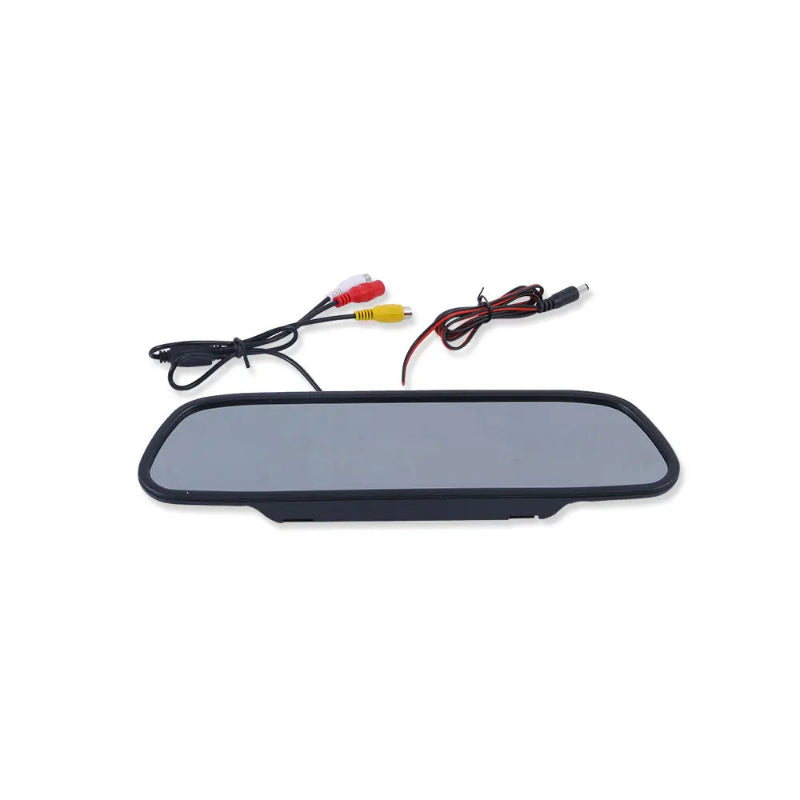

  • 5 Inch Mirror Monitor Showing Reverse Camera Feed

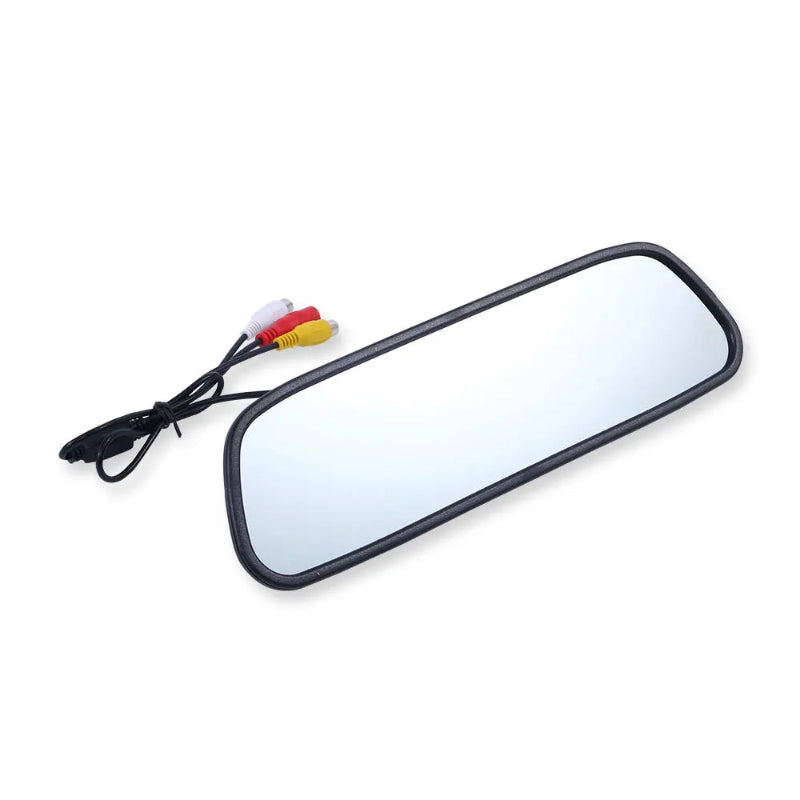

  • Reverse Camera Monitor 800x480 TFT-LCD Screen Detail

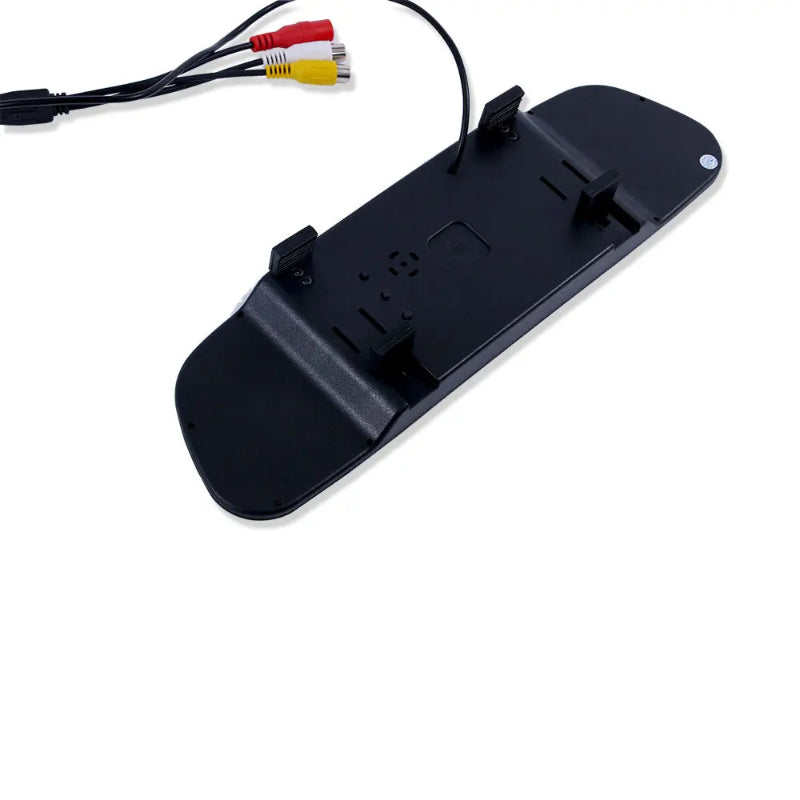

  • Reverse Camera Monitor with Camera Kit Option
1 4

AutoSmart Parts

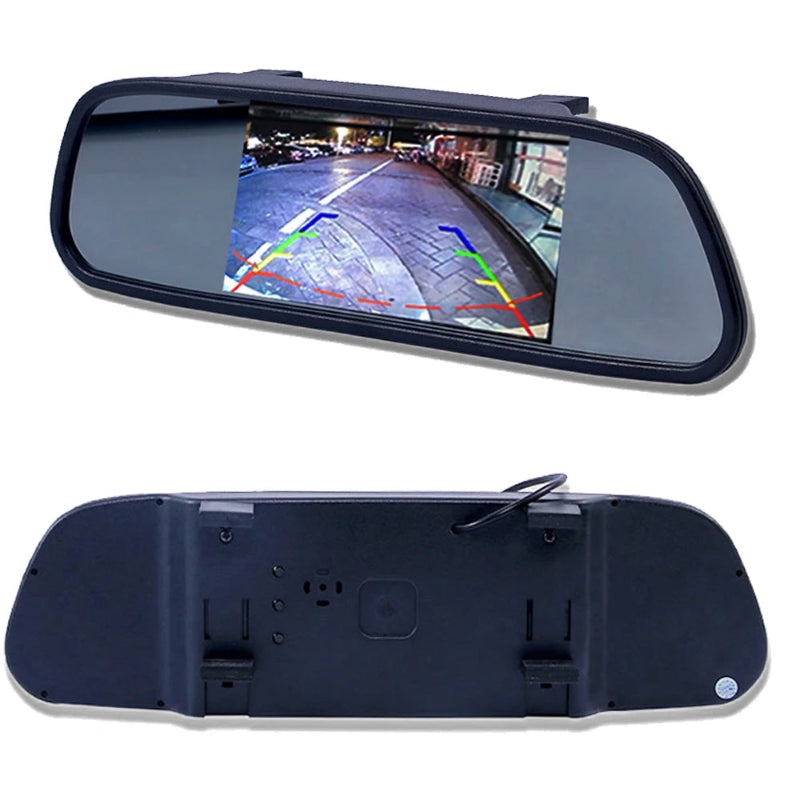

Reverse Camera Monitor Mirror 5 Inch

5.0 (6 reviews)
5.0
6 reviews
5 6
4 0
3 0
2 0
1 0

Reverse camera monitor mirror with 5 inch 800x480 screen and two video inputs. Auto switches when reversing, runs on 12V or 24V, 1 year warranty.

$99.99 AUD
$129.99 AUD $99.99 AUD
Sale Sold out
Secure shippingSecure shipping
Easy exchangeEasy exchange
24/7 support24/7 support

check 5 inch 800x480 TFT-LCD colour screen
check Switches to the camera automatically on video signal
check Two video inputs for reverse camera plus a second source
check Runs on 12V and 24V, from cars to trucks

Select Model
American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa

Specifications

Display: 5 inch TFT-LCD, 800 x 480, 16:9
Video system: PAL and NTSC
Inputs: V1/V2 two video inputs
Power: 3W, DC 12V/24V
Contrast: 350:1
Operating temperature: -20C to +60C
Size: 285 x 82 x 20mm, about 285g
Warranty: 1 year
High-concern chemical: None

Compatible With

Vehicles: Universal 12V and 24V, covering cars, utes, vans, trucks and RVs
Cameras: Works with reversing cameras, CCTV cameras and car DVD players in PAL or NTSC

What’s Included / Care Instructions

Packing list: 5 inch mirror monitor x1, power cable x1, manual x1. The Monitor with Camera option adds the reversing camera
Care: Route cables away from moving parts and keep the screen clean with a dry cloth.

View full details

How to Install

1. Mount the Monitor

Fit the slim 285mm monitor at the mirror or sunvisor position following the included manual.

2. Wire Power and Camera

Connect 12V or 24V power and plug the reversing camera into V1, with V2 free for a second video source.

3. Reverse and See

The screen wakes and switches to the camera automatically when it detects the video signal, right as you select reverse.

Common Questions Before You Buy

Does it come with the camera?
That depends on the option: Monitor with Camera includes the reversing camera, Monitor Only is just the screen for a camera you already have.
Will it work with my existing camera?
Yes. It accepts standard reversing cameras, CCTV cameras and car DVD players, supporting both PAL and NTSC video systems.
Does it suit trucks and 24V vehicles?
Yes. The power supply covers DC 12V and 24V, so it works in cars, vans, trucks and RVs alike.
How does the automatic switching work?
The monitor turns on and switches to the camera feed whenever it detects a video signal, so the rear view appears the instant you engage reverse.
Is there a warranty?
Yes, the monitor is covered by a 1 year warranty.
